The characteristics and likely causes of the Medieval megadroughts in North America

by Richard Seager, Celine Herweijer and Ed Cook

Lamont-Doherty Earth Observatory of Columbia University

Severe though the six multi-year droughts since the mid nineteenth century have been in terms of environmental and social impacts, as climate events they were dwarfed by a series of megadroughts that struck the West between about 900 and 1400 AD. These droughts were sufficiently long in duration that it actually makes more sense to describe the Medieval climate of the West as not so much afflicted by a sequence of droughts but as simply more arid than in subsequent centuries or now.

The visual evidence of medieval megadroughts in the landscape today

The medieval droughts were long before the beginning of instrumental weather records and their character and severity must be reconstructed from the signature they left within the environment. One of the most dramatic of these is frequently seen by travelers in the mountains states of the West who probably rarely understand what they are seeing. Dead tree stumps, seasonally flooded by water, are often seen in river valley bottoms in the Sierra Nevada and they also populate the underwater margins of famous lakes such as Mono Lake. In the early 1990s Scott Stine, a University of California geographer, began using carbon dating to determine when these trees were living and found that they pretty much all grouped in the medieval period. See Scott Stine's article at www.yosemite.org. The trees were living in river valleys and around lakes that, because the climate was drier, never flooded. When the medieval megadrought period ended, waters rose and the trees died. Elsewhere in the high plains of Nebraska and elsewhere the medieval megadroughts can still be seen as massive sand dunes that are now grassed over and stable.

In a remarkable paper ("Late Quaternary bison population changes on the southern Plains," Plains Anthropologist, 19 (1974) 180-196), Tom Dillehay successfully sketched the medieval climatological history of the southern Great Plains based on little more than the numbers of bison bones found in archaeological sites. At this time few Indians were dependent on bison hunting -- that was yet to come when European expanded into the moister areas to the east and displaced Indians from areas where they both farmed and hunted. In Dillehay's study it is striking how few were the bison remains a millennium ago compared to the periods before and after. He also drew what now appears the correct conclusion -- the climate was drier and bison populations shrank as grasslands became desert.

The medieval megadroughts may also have left their signature on the human environment of the West. The great cliff cities in the four corners region of the West such as at Chaco Canyon and Mesa Verde were all abandoned towards the end of the drought. These societies were based on irrigated agriculture. Although there remains much debate about why these highly organized Indian societies collapsed archaeologists are revisiting the idea that decades of dry conditions were part of the reason (see Jones et al., "Environmental Imperatives Reconsidered: Demographic Crises in Western North America during the Medieval Climate Anomaly," Current Anthropogy, April 1999). By the time wetter conditions returned, the Spaniards had also arrived and probably prevented Indians from reestablishing irrigation-based complex urban societies.

Tree ring records of the spatial extent, severity and duration of droughts

The best record of the droughts come from the width of annual growth rings of long lived trees. Correlation of modern day ring widths with weather records has demonstrated that the ring width is strongly related to summer values of the so-called Palmer Drought Severity Index or PDSI. The PDSI was developed as a simple measure of the moisture content of soil in the root zone. It makes sense that the tree ring width would correlate with this during summer since that is the growth season. Analysis of ring widths from living trees that have lived in North America for as long as two millennia, together with plenty of complex statistics, allows preparation of maps of summer PDSI for each year from 2 BC to now. This data set was developed at the Tree Ring Laboratory at Lamont-Doherty Earth Observatory and is called the North American Drought Atlas (NADA). For the early centuries the coverage is limited to areas of the West with very long lived trees but by the beginning of the medieval droughts the coverage is pretty much all of the current United States.

In 2004, Ed Cook, of the LDEO Tree Ring Lab, published the first results from the NADA. One figure, reproduced here (Figure 1), of the percentage of the American West at any time effected by severe drought made a clear case for elevated aridity during the medieval period. For several hundred years up until the 15th century well over half the area routinely experienced severe drought at any time. The centuries to follow -- broadly coincident with the Little Ice Age period of a colder climate in Europe -- was wetter. There is a hint that we have been returning to a more arid climate since the beginning of the 19th century.

Figure 1

Top, the percent of the area of the American West experiencing moderate to severe drought at any one time as reconstructed from tree ring records over the last millennium. The time series has been filtered to emphasize variations on timescales of many decades to centuries. The lower panel shows a blowup for the last century emphasizing that the recent drought was not historically exceptional. The figure is taken from Cook et al. (2004, Science). During Medieval times serious drought affected large areas of the West. Following that there was a long period of more moderate drought (corresponding to the Little Ice Age) and, since then there appears to have been a return to a more drought stricken climate.

Tree ring records of modern droughts

In the last year a collaboration between the Tree Ring Lab and the Climate Modeling and Diagnostics Group at LDEO has allowed a closer look at the tree ring records of drought. Figure 2 shows the summer PDSI reconstructed from the tree ring records for the modern day droughts as well as time series of the PDSI averaged over a region defined as the American West (25 N to 50 N and 125 W to 95 W) for the years covered by the droughts. By comparison to instrumental records, it is clear that the tree ring growths faithfully record the droughts. Each drought effected much of North America from the Appalachians to the Pacific coast and from the northern Mexico and the Gulf Coast into Canada. Each was also associated with weak tendencies to wetter conditions in the Pacific Northwest, maritime eastern Canada and southern Mexico. In the year by year evolution the multiyear droughts were made up of years of severe drought interrupted by more modest years and the occasional wet years. None appear monolithic in having dry conditions year after year after year although the Civil War drought comes closest to this.

Figure 2

Tree ring records of modern droughts. The spatial distribution of tree ring summer Palmer Drought Severity Index (PDSI) is at left and the PDSI averaged over the West is at right.

Spatial patterns of tree ring records of drought and related ocean conditions

Figure 3 shows the results of an analysis, by Rotated Empirical Orthogonal Functions (REOF), of the spatial patterns of the tree ring records of droughts during the modern period. The first pattern, which explains 32% of the total variance, well describes the observed droughts in covering most of the United States with weak opposite-signed regions in the northwest and northeast. The second and third patterns would better describe droughts more localized in the east and west of the continent.

Figure 3

Summer drought patterns from tree rings for the period 1000-2003 AD as estimated from Rotated Empirical Orthogonal Analysis. The fraction of the total variance explained by each REOF is indicated. According to Preisendorfer's Rule N (bottom right) these three patterns are physically distinct.

The patterns of sea surface temperature (SST) and sea level pressure (SLP) associated with these patterns can be reconstructed via linear regression onto the time series of the relevant REOF. This is shown in Figure 4. The first, dominant mode, is correlated with a La Niña-like SST and SLP pattern: cold in the tropical Pacific Ocean with warm anomalies in the mid-latitude Pacific, a cold Indian Ocean and a seesaw of SLP between the eastern and western hemispheres. The other two patterns do not seem to be linked into coherent and known patterns of ocean variability. The second pattern could, however, be related to the North Atlantic Oscillation.

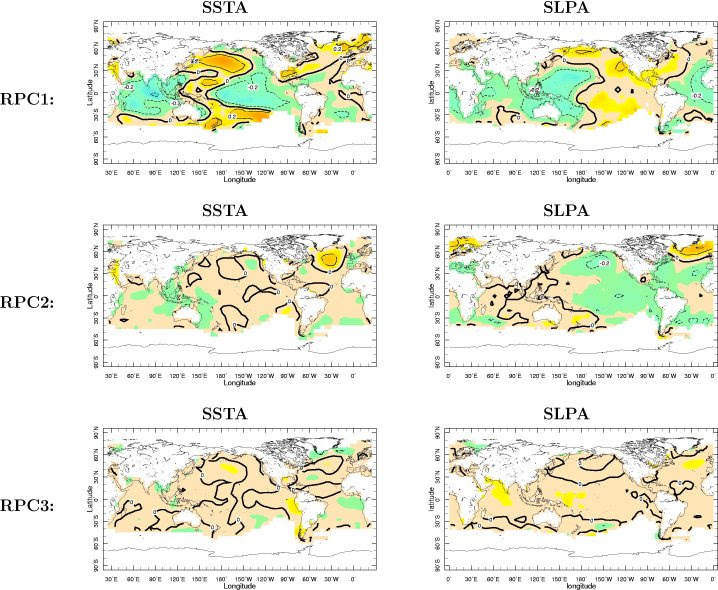

Figure 4

The SST (left) and SLP (right) patterns associated with the first three REOF patterns of drought evaluated on the 1856-2003 period. Pattern 1 if a typical decadal La-Niña-like pattern. Pattern 2 could be the summer North Atlantic Oscillation. The third drought pattern does not seem to be related to any clear mode of SST variation. These results support our modeling work of the 1856 to current period in that tropical Pacific influence dominates but that there may be a secondary Atlantic influence too.

These results support our modeling work of the 1856 to current period in that tropical Pacific influence dominates but that there may be a secondary Atlantic influence too

Tree ring records of medieval droughts

Figure 5 shows the spatial patterns and histories for a collection of medieval megadroughts. (Note that the time series in this figure extends over a much longer period of time than for the modern drought figure above.) Compared to the figures for the modern droughts what is remarkable is how similar the spatial pattern of the medieval droughts is to those with which we are familiar from experience and the instrumental record. The severity of drought in any year was also similar to that of a modern day drought. It is the year to year persistence of the medieval droughts that is different. Years as dry as 1936 or 1939 during the Dust Bowl drought frequently occurred year after year, and often with no break, (e.g., between 1140 and 1165) during medieval times.

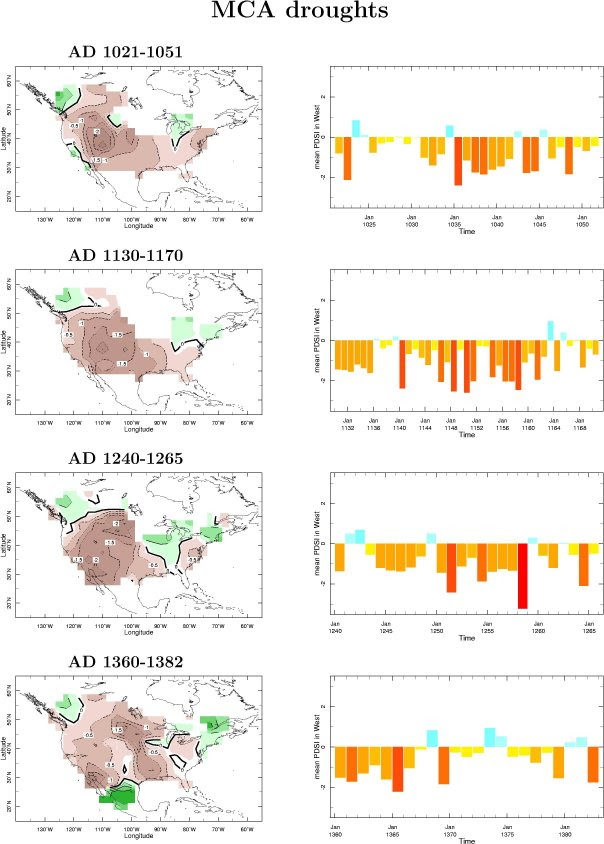

Figure 5

Tree ring records of some medieval droughts. Spatial distribution is at left and the time history at right.

The year-to-year variability of drier and wetter conditions still occurred during the medieval period, albeit about a drier mean state. This is shown in Figure 6. Since ENSO currently influences such interannual variability this suggests that ENSO was operative then as now.

Figure 6

Histograms of annual summer tree ring derived PDSI for (top) the medieval period (or medieval climate anomaly (MCA)), (middle) the Little Ice Age and (bottom) the modern, post 1856, period.

These results suggest three obvious conclusions:

1. The similarity of the spatial patterns suggests that the physical processes that caused the modern droughts also caused the medieval megadroughts.
2. The global atmosphere ocean conditions that currently cause modern droughts for a few years at a time were the prevailing ocean climate during the medieval period.
3. Despite the shift in the mean tropical ocean climate ENSO variability continued as now but oscillating about a colder mean state.

The global pattern of medieval hydroclimate

If a cooler tropical Pacific Ocean was the cause of the medieval megadroughts then, analogous to the historical period, we would also expect the climate to have been drier in southern South America, wetter in northern South America and Central America, wetter in the Sahel region of Africa but drier in coastal east Africa and drier in parts of the Mediterranean and southern Europe. There should also be evidence of colder ocean temperatures in the tropical Pacific. Figure 7 shows a compilation of proxy evidence (from trees, lake records, Nile flow records, ocean sediments, etc.) for hydroclimate conditions during the medieval period. Broadly speaking, the evidence of wet and dry conditions fits into the global pattern of hydroclimate change established for the historical period using satellite data, instrumental records and climate models. One of the more intriguing records comes from records of Nile flow. This tends to be low during El Niño events as rainfall is reduced over the headwaters of the White Nile. Therefore La Niña conditions tend to support high Nile flow. In a 1993 paper analyzing the Nile records, Quinn shows that low flows were only half as common during the medieval period as they were during the subsequent Little Ice Age!

Figure 7

Proxy evidence for medieval hydroclimate. Brown indicates a proxy indicator of dry conditions and green an indicator of wet conditions. The pattern resembles that of the global hydroclimate associated with modern day North American droughts.

For the tropical Pacific Ocean itself there is only one published record of reconstructed ocean temperatures -- based on the geochemistry of corals found on the island of Palmyra and analyzed by Kim Cobb, see web page. She interprets her data to indicate a colder tropical Pacific ocean during the periods of the medieval epoch for which she has data. Consequently, despite considerable limitations of the proxy evidence, to date it does support the idea that, during medieval times, the global hydroclimate tended towards what we would now call a La Niña-like state.

A first attempt to use the coral data to try to model the megadroughts can be found here.

References at link:  http://www.ldeo.columbia.edu/res/div/ocp/drought/medieval.shtml
