Historic Greenland ice sheet rainfall unraveled

by , May 26, 2022

Historic Greenland ice sheet rainfall unravelled
Meltwater and surface lakes on the Greenland ice sheet. Credit: contains modified Copernicus Sentinel data (2021), processed by ESA

For the first time ever recorded, in the late summer of 2021, rain fell on the high central region of the Greenland ice sheet. This extraordinary event was followed by the surface snow and ice melting rapidly. Researchers now understand exactly what went on in those fateful summer days and what we can learn from it.

The never-before-seen rainfall, on 14 August 2021, made headlines around the world. The upper-most parts of Greenland's enormous ice cap used to be too cold for anything other than  to fall, but not anymore.

What caused this extreme rainfall and how did it affect the ice?

Researchers from the Department of Glaciology and Climate at the Geological Survey of Denmark and Greenland (GEUS) in collaboration with colleagues from France and Switzerland have scrutinized these questions and come up with the answers.

It didn't only rain at Summit Camp—rain was measured by new automatic weather stations placed across the ice sheet by GEUS' ice-sheet monitoring projects PROMICE and GC-Net.

Studying detailed data from these stations alongside measurements of surface reflectivity, or albedo, from the Copernicus Sentinel-3  and information on , the researchers discovered that the rain had been preceded by a heatwave at a time of year when seasonal melting is usually slowing down.

Historic Greenland ice sheet rainfall unravelled
Greenland air temperature for August 2019, 2020, 2021, compared to the 1991–2020 August average. Credit: Copernicus Climate Change Service/ECMWF/ESA (data ERA5)

It wasn't the rain

"It turns out that the rain itself wasn't the most important factor," says Prof. Jason Box from GEUS and lead author of the paper reporting their results, which has been accepted for publication in Geophysical Research Letters.

"There is an irony. It's not really the rain that did the damage to the snow and ice, it's the darkening effect of the meltwater and how the heat from the event erased snow that had overlaid darker ice across the lower third of the ice sheet.

"Unusually warm atmospheric rivers swept along Greenland in the late summer months, bringing potent melt conditions when the  was drawing to a close."

In fact, this sudden increase of surface ice melt on Greenland could have happened without any rain ever touching the ground.

The never-before-seen rainfall, on 14 August 2021, made headlines around the world. The upper-most parts of Greenland's enormous ice cap used to be too cold for anything other than  to fall, but not anymore.


For the first time ever recorded, in the late summer of 2021, rain fell on the high central area of the Greenland ice sheet. This extraordinary event was preceded by a heatwave and followed by the surface snow and ice rapidly melting. The animation is a series of five images captured by the Copernicus Sentinel-2 mission and shows how the surface of the ice sheet changed between on 1, 3, 5, 20, and 23 August 2021. The melt, which also created lakes on the surface of the ice, is clear to see. Researchers, supported by ESA’s Science for Society program, discovered that it wasn’t actually the rain that caused the melt, it was unusually warm ‘atmospheric rivers’ that swept along Greenland, bringing potent melt conditions when the melt season would normally be drawing to a close. Credit: contains modified Copernicus Sentinel data (2021), processed by ESA.

Even though the rainfall was a shock and a milestone in climate history, researchers knew it was bound to happen sooner or later, given the rising temperatures of the Arctic.

Therefore, Prof. Box and the co-authors encourage research to look further into the workings behind atmospheric rivers and not just rainfall.

They conclude that understanding the frequency of heatwaves, appears to be a more significant research target than the liquid precipitation that heatwaves may or may not produce.


https://phys.org/news/2022-05-historic-greenland-ice-sheet-rainfall.html

Tuesday, February 22, 2022

Flip Flop: Why Variations in Earth's Magnetic Field Aren't Causing Today's Climate Change

 By Alan Buis, NASA's Jet Propulsion Laboratory, August 3, 2021

magnetosphere
Earth is surrounded by a system of magnetic fields, called the magnetosphere. The magnetosphere shields our home planet from harmful solar and cosmic particle radiation, but it can change shape in response to incoming space weather from the Sun. Credit: NASA's Scientific Visualization Studio
conceptual animation of solar wind
A constant outflow of solar material streams out from the Sun, depicted here in an artist's rendering. This solar wind is always passing by Earth. Credit: NASA Goddard's Conceptual Image Lab/Greg Shirah

Earth is surrounded by an immense magnetic field, called the magnetosphere. Generated by powerful, dynamic forces at the center of our world, our magnetosphere shields us from erosion of our atmosphere by the solar wind, particle radiation from coronal mass ejections (eruptions of large clouds of energetic, magnetized plasma from the Sun’s corona into space), and from cosmic rays from deep space. Our magnetosphere plays the role of gatekeeper, repelling these forms of energy that are harmful to life, trapping most of it safely away from Earth’s surface. You can learn more about Earth’s magnetosphere here.

Since the forces that generate our magnetic field are constantly changing, the field itself is also in continual flux, its strength waxing and waning over time. This causes the location of Earth’s magnetic north and south poles to gradually shift, and to even completely flip locations every 300,000 years or so. That might be somewhat important if you use a compass, or for certain animals like birds, fish and sea turtles, whose internal compasses use the magnetic field to navigate.

The Sun unleashed a series of four coronal mass ejections (CMEs) on May 22-24, 2010 as the STEREO Ahead spacecraft watched the action. In the coronagraph images, the Sun, blocked out by an occulting disk (seen as red), is represented by a white disk to show its relative size. CMEs are large solar storms that expel a billion tons of matter at a million miles per hour or more. Credit: NASA/European Space Agency

Some people have claimed that variations in Earth’s magnetic field are contributing to current global warming and can cause catastrophic climate change. However, the science doesn’t support that argument. In this blog, we’ll examine a number of proposed hypotheses regarding the effects of changes in Earth’s magnetic field on climate. We’ll also discuss physics-based reasons why changes in the magnetic field can’t impact climate.

Image of the average strength of Earth's magnetic field at the surface (measured in nanotesla) between January 1 and June 30, 2014

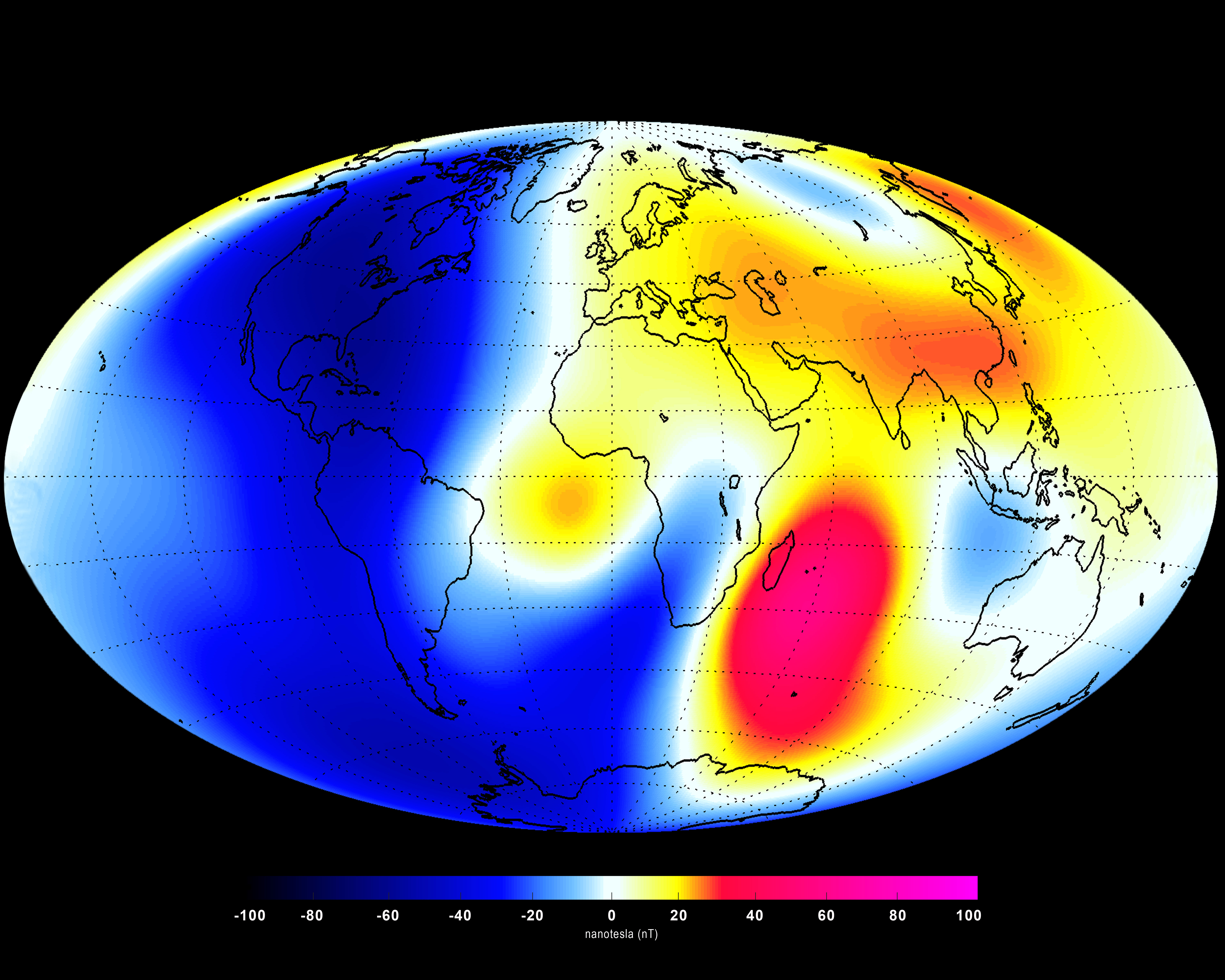

Image showing changes in Earth's magnetic field between January 1 and June 20, 2014
Launched in November 2013 by the European Space Agency (ESA), the three-satellite Swarm constellation is providing new insights into the workings of Earth’s global magnetic field. Generated by the motion of molten iron in Earth’s core, the magnetic field protects our planet from cosmic radiation and from the charged particles emitted by our Sun. It also provides the basis for navigation with a compass.

Based on data from Swarm, the top image shows the average strength of Earth’s magnetic field at the surface (measured in nanotesla) between January 1 and June 30, 2014. The second image shows changes in that field over the same period. Though the colors in the second image are just as bright as the first, note that the greatest changes were plus or minus 100 nanotesla in a field that reaches 60,000 nanotesla. Credit: European Space Agency/Technical University of Denmark (ESA/DTU Space)

Get NASA's Climate Change News: Subscribe to the Newsletter »

Hypotheses:

1. Shifts in Magnetic Pole Locations

NOAA NCEI and CIRES scientists created this animation depicting the wandering of Earth’s North Magnetic Pole over the past 50 years. Credit: NOAA/NCEI

The position of Earth’s magnetic north pole was first precisely located in 1831. Since then, it’s gradually drifted north-northwest by more than 600 miles (1,100 kilometers), and its forward speed has increased from about 10 miles (16 kilometers) per year to about 34 miles (55 kilometers) per year. This gradual shift impacts navigation and must be regularly accounted for. However, there is little scientific evidence of any significant links between Earth’s drifting magnetic poles and climate.

2. Magnetic Pole Reversals

Supercomputer models of Earth's magnetic field
Supercomputer models of Earth's magnetic field. On the left is a normal dipolar magnetic field, typical of the long years between polarity reversals. On the right is the sort of complicated magnetic field Earth has during the upheaval of a reversal. Credit: University of California, Santa Cruz/Gary Glatzmaier

During a pole reversal, Earth’s magnetic north and south poles swap locations. While that may sound like a big deal, pole reversals are common in Earth’s geologic history. Paleomagnetic records tell us Earth’s magnetic poles have reversed 183 times in the last 83 million years, and at least several hundred times in the past 160 million years. The time intervals between reversals have fluctuated widely, but average about 300,000 years, with the last one taking place about 780,000 years ago.

Geomagnetic polarity over the past 169 million years, trailing off into the Jurassic Quiet Zone. Dark areas denote periods of normal polarity, light areas denote reverse polarity.
Geomagnetic polarity over the past 169 million years, trailing off into the Jurassic Quiet Zone. Dark areas denote periods of normal polarity, light areas denote reverse polarity. Credit: Public domain

During a pole reversal, the magnetic field weakens, but it doesn’t completely disappear. The magnetosphere, together with Earth’s atmosphere, continue protecting Earth from cosmic rays and charged solar particles, though there may be a small amount of particulate radiation that makes it down to Earth’s surface. The magnetic field becomes jumbled, and multiple magnetic poles can emerge in unexpected places.

No one knows exactly when the next pole reversal may occur, but scientists know they don’t happen overnight: they take place over hundreds to thousands of years.

In the past 200 years, Earth’s magnetic field has weakened about nine percent on a global average. Some people cite this as “evidence” a pole reversal is imminent, but scientists have no reason to believe so. In fact, paleomagnetic studies show the field is about as strong as it’s been in the past 100,000 years, and is twice as intense as its million-year average. While some scientists estimate the field’s strength might completely decay in about 1,300 years, the current weakening could stop at any time.

The Sun expels a constant outflow of particles and magnetic fields known as the solar wind and vast clouds of hot plasma and radiation called coronal mass ejections. This solar material streams across space and strikes Earth’s magnetosphere, the space occupied by Earth’s magnetic field, which acts like a protective shield around the planet.
The Sun expels a constant outflow of particles and magnetic fields known as the solar wind and vast clouds of hot plasma and radiation called coronal mass ejections. This solar material streams across space and strikes Earth’s magnetosphere, the space occupied by Earth’s magnetic field, which acts like a protective shield around the planet. Credit: NASA Goddard/Bailee DesRocher

Plant and animal fossils from the period of the last major pole reversal don’t show any big changes. Deep ocean sediment samples indicate glacial activity was stable. In fact, geologic and fossil records from previous reversals show nothing remarkable, such as doomsday events or major extinctions.

3. Geomagnetic Excursions

Recently, there have been questions and discussion about “geomagnetic excursions:” shorter-lived but significant changes in the magnetic field’s intensity that last from a few centuries to a few tens of thousands of years. During the last major excursion, called the Laschamps event, radiocarbon evidence shows that about 41,500 years ago, the magnetic field weakened significantly and the poles reversed, only to flip back again about 500 years later.

Earth's magnetic field
Earth’s magnetic field. Credit: NASA

While there is some evidence of regional climate changes during the Laschamps event timeframe, ice cores from Antarctica and Greenland don’t show any major changes. Moreover, when viewed within the context of climate variability during the last ice age, any changes in climate observed at Earth’s surface were subtle.

Bottom line: There’s no evidence that Earth’s climate has been significantly impacted by the last three magnetic field excursions, nor by any excursion event within at least the last 2.8 million years.

Physical Principles

1. Insufficient Energy in Earth’s Upper Atmosphere

Electromagnetic currents exist within Earth’s upper atmosphere. But the energy driving the climate system in the upper atmosphere is, on global average, a minute fraction of the energy that drives the climate system at Earth’s surface. Its magnitude is typically less than one to a few milliwatts per square meter. To put that into context, the energy budget at Earth’s surface is about 250 to 300 watts per square meter. In the long run, the energy that governs Earth’s upper atmosphere is about 100,000 times less than the amount of energy driving the climate system at Earth’s surface. There is simply not enough energy aloft to have an influence on climate down where we live.

2. Air Isn’t Ferrous

Finally, changes and shifts in Earth’s magnetic field polarity don’t impact weather and climate for a fundamental reason: air isn’t ferrous.

Ferrous? Say what?? Bueller? Bueller?

Ferrous means “containing or consisting of iron.” While iron in volcanic ash is transported in the atmosphere, and small quantities of iron and iron compounds generated by human activities are a source of air pollution in some urban areas, iron isn’t a significant component of Earth’s atmosphere. There’s no known physical mechanism capable of connecting weather conditions at Earth’s surface with electromagnetic currents in space.

Thermal and compositional structure of the atmosphere.
Thermal and compositional structure of the atmosphere. The upper atmosphere, comprising the mesosphere, thermosphere, and embedded ionosphere, absorbs all incident solar radiation at wavelengths less than 200 nanometers (nm). Most of that absorbed radiation is ultimately returned to space via infrared emissionsfrom carbon dioxide (CO2) and nitric oxide (NO) molecules. The stratospheric ozone layer absorbs radiation between 200 and 300 nm.

The plot on the left shows the typical global-average thermal structure of the atmosphere when the flux of solar radiation is at the minimum and maximum values of its 11-year cycle. The plot on the right shows the density of nitrogen (N2), oxygen (O2), and atomic oxygen (O), the three major neutral species in the upper atmosphere, along with the free electron (e−) density, which is equal to the combined density of the various ion species. The F, E, and D regions of the ionosphere are also indicated, as is the troposphere, the atmosphere’s lowest region. Credit: Naval Research Laboratory/J. Emmert

Solar storms and their electromagnetic interactions only impact Earth’s ionosphere, which extends from the lowest edge of the mesosphere (about 31 miles or 50 kilometers above Earth’s surface) to space, around 600 miles (965 kilometers) above the surface. They have no impact on Earth’s troposphere or lower stratosphere, where Earth’s surface weather, and subsequently its climate, originate.

In short, when it comes to climate, variations in Earth’s magnetic field are nothing to get charged up about.

Related Feature

Earth's Magnetosphere: Protecting Our Planet from Harmful Space Energy

https://climate.nasa.gov/ask-nasa-climate/3104/flip-flop-why-variations-in-earths-magnetic-field-arent-causing-todays-climate-change/
