Zebras? In Greenland? Really?

by Daniel Bailey and Mauri Pelto, Skeptical Science, April 11, 2012

At first glance, zebras are all the same.  Sure, you can argue that they are black with white stripes or white with black stripes.  But nobody really cares; they're zebras, after all.

[sorry, readers, in the interest of saving space the photo of the zebras is not posted -- but I am sure you will have no trouble imagining them]

Just as each zebra has an individualized set of stripes, making them unique, so also are each of the individual glaciers in Greenland unique.  They each have varied lengths, heights, widths, fjord geometries, differently-sized accumulation zones (where they "pack on weight") and flow speeds.  Each is located in a different part of Greenland and thus are also affected differently by their latitude, oceanic currents (for the marine-terminating glaciers), weather and climatic patterns.  And also by the modifying effects of Arctic amplification of the warming of the globe.

Variations in Greenland Ice Sheet outlet glacier behavior

The Greenland Ice Sheet has an area of 2.17 million square kilometers (1.28 million square miles) and spans 18 degrees of latitude from north to south.  It is not surprising that over this vast area that the geology and climate vary substantially and that this leads to variations in behavior of Greenland glaciers.  Our tendency is to lump the Greenland Ice Sheet into one category impacted similarly by each of the dynamic forces that impact flow. This is akin to saying banks, credit unions and savings and loan institutions are impacted similarly by all the economic forces.  In the case of a recession there is a shared signal, just as with global warming there is a shared signal amongst Greenland glaciers.   This is a simplification that does not work.  In this article we divide the glaciers into four main categories to illustrate the different properties and sensitiveness of each.

The surface mass balance of the glacier is the difference of accumulating snow on the ice sheet (its income) and snow and ice losses from melting and calving (its expenditures).  The volume of the ice sheet is its asset.  On an ice sheet, the main factor driving flow is simply the mass balance input in the accumulation zone.  The higher the accumulation rate the faster the movement; the accumulated snow is inexorably moved downslope towards the ocean and the margin of the ice sheet.  Observation of a precipitation map (focused not on the outer margin, but on the accumulation zone of the ice sheet) indicates that highest accumulation rates, over 40 cm per year, extend along the western side of the ice sheet to the southeast quadrant of the ice sheet.

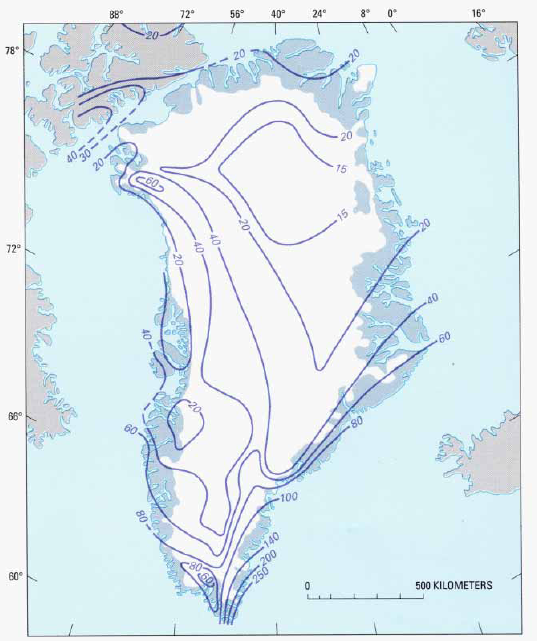

Figure 2. Distribution of precipitation in Greenland (in grams per square centimeter per year). Contours dashed where inferred. Ice-free areas are shown in dark gray. (USGS Satellite Image Atlas of Greenland)

The overall topography of the ice sheet is controlled both by the basal and peripheral geology and the mass balance distribution of the ice sheet.  The higher rates of mass accumulation inland and the greater melting nearer the margin yield a steeper profile for the ice sheet.

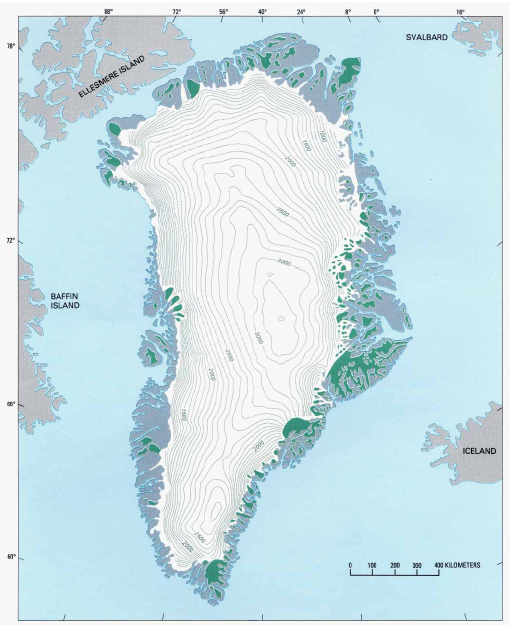

Figure 3. Topographic map of the Greenland ice sheet. The contour interval is 100 m. Local ice caps and ice domes are shown in green. Ice-free areas are shown in dark gray. (USGS Satellite Image Atlas of Greenland)

Figure 3 shows that the contours have the closest spacing along the west margin and in the southeast, just as the high accumulation rates in those areas would suggest.  Thus the combination of the surface slope and the accumulation rate drive faster flow in these regions.

The generalized calving output of each section of the ice sheet (Figure 4, below) indicates the volume flux by quadrant and by glacier in some cases.

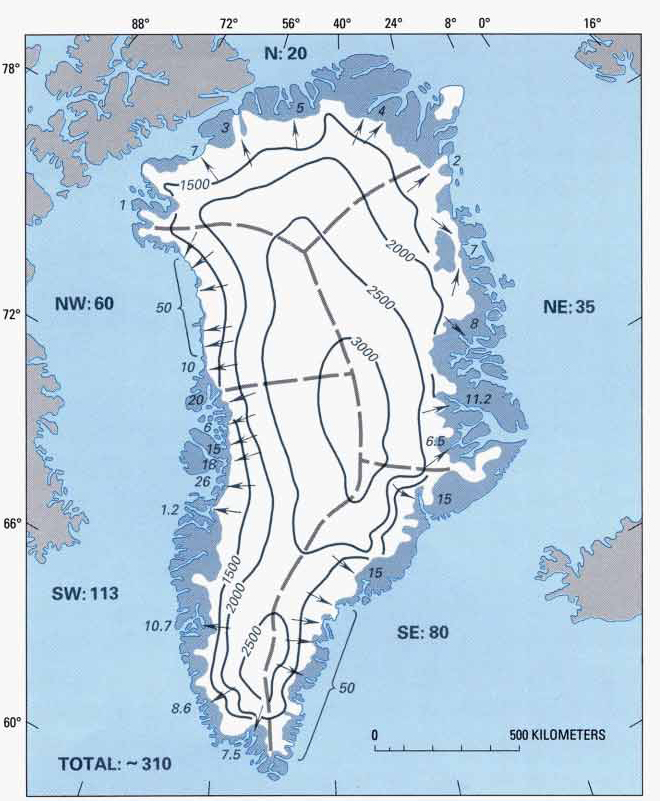

Figure 4. Generalized calving output by quadrant, in cubic kilometers per year water equivalent based on the assumption of an equilibrium state. The contours indicate elevation in meters. (USGS Satellite Image Atlas of Greenland)

The northern quadrant is one of the largest in terms of the ice sheet perimeter, but the calving output is the lowest at 20 km³.  The northeast quadrant at 35 km³ is the second lowest.  The highest are the southwest and southeast quadrants at 113 and 80 km³, respectively.  The difference is the result of higher accumulation rates.   If we look at more recent work, which examines the changes in volume discharge and surface mass balance, we see the greatest discharge changes and surface loss are in the southeast.

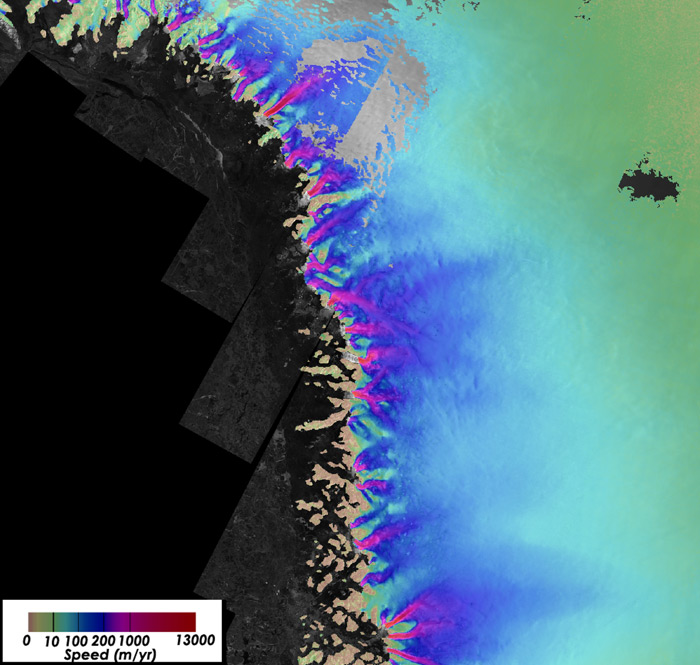

Figure 5. Higher calving flux indicates higher velocities (Van Den Broecke et al., 2009). D denotes change in ice discharge while SMB denotes the net surface mass balance (accumulation minus ablation).

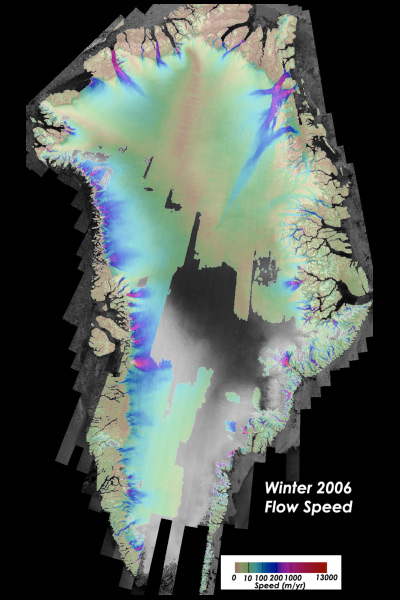

Figure 6. Ice flow speed in Greenland (color) for winter 2006 derived from synthetic aperture radar (SAR) imagery (gray scale image derived from NASA funded research). Because of the large range of speeds (1-13,000 m/yr), a log color scale is used (Ian Joughlin, Big Ice).

Hence the above velocity map of the glacier will indicate higher average velocities in the quadrants with the highest calving volume flux.  This map indicates relatively low flow rates of less than 10 m/year inland, with particular bands of fast flow that extend well into the ice sheet and feed outlet glaciers.  The variation in flow and accumulation rates indicates the problem of lumping the glaciers into one category.

Climate change has led to an observed increase in surface melting, surface accumulation, increased discharge and overall mass balance losses.  The very mechanism that establishes the basics of behavior of the GIS mass balance are changing (Zwally et al., 2011).

Greenland glaciers fall into at least 4 common types, each with its own unique sensitivity to sea surface temperature, surface melting, meltwater lubrication, calving changes, etc.

Type 1: Northern, with Large Floating Termini

Northern glaciers with large floating termini (Petermann, Ryder, Steensby, Zachariae, Academy, etc).  Each of these is a marine terminating outlet glacier that has an extensive floating ice shelf.  The large ice shelves can exist in part due to the lower surface melt rates and the lower flow rates of the glacier.  Petermann Glacier is the fastest with a flow speed of 1,000 m/year at the grounding line.  This is much less than the average outlet glacier speed along the west coast.  The large floating ice shelves are susceptible to bottom melting but, except for Petermann Glacier, we have no observations of the process or that more warm water is penetrating under these ice shelves.  Rignot and Steffen (2008) found that at Petermann Glacier 80% of the ice loss into the ocean was from basal melting of the floating tongue.  If the ice shelves are removed, the feeding glacier is less buttressed and will accelerate for a period and draw down its surface profile.  The recent ice area lost by Petermann, Academy and Zachariae Ice Stream indicate these glaciers are being impacted by the increased melting at the surface and likely the base of the ice shelf for Petermann Glacier at least.

Examination of how far the high velocities extend inland in Figure 6 indicates that it is only Zachariae and Petermann that tap far into the ice sheet.  This northern area has low accumulation rates, and a shorter less intense melt season.  The early onset of melting and lack of accumulation in 2010 led to an early exposure of the ablation zone on these glaciers.

This is their sensitivity Achilles Heel:  relatively little increases in melt can expand the ablation zone appreciably given the low surface slopes and low accumulation rates.   Based on the velocity map, it is the Zachariae that is likely the only of this group that would be comparable to a bank that is too big to fail as its increased velocity band extends well into the ice sheet.

Figure 7. Ice flow speed for Zachariae Glacier (Joughlin et al., 2010).

Type 2: Inland-terminating

Glaciers with inland termini lacking any calving (Sukkertoppen, Frederickshaab, Russell, etc.). Between the fast flowing marine terminating outlet glaciers, the ice sheet particularly in the southwest quadrant has numerous glaciers that terminate on land or in small lakes.  The velocity of these glaciers reaches a maximum of 1-2 meters/day.  Each terminates on land because total ablation over the glacier equals total accumulation at the terminus.  These glaciers are more like a typical alpine glacier and are susceptible to the forces that tend to cause alpine glaciers to experience peak flow during spring and early summer.  Those forces are the delivery of meltwater to the base of the glacier, when a basal conduit system is poorly developed.  This leads to high basal water pressure, which enhances sliding.  As the conduit system develops the basal water pressure declines as does sliding, even with more water.

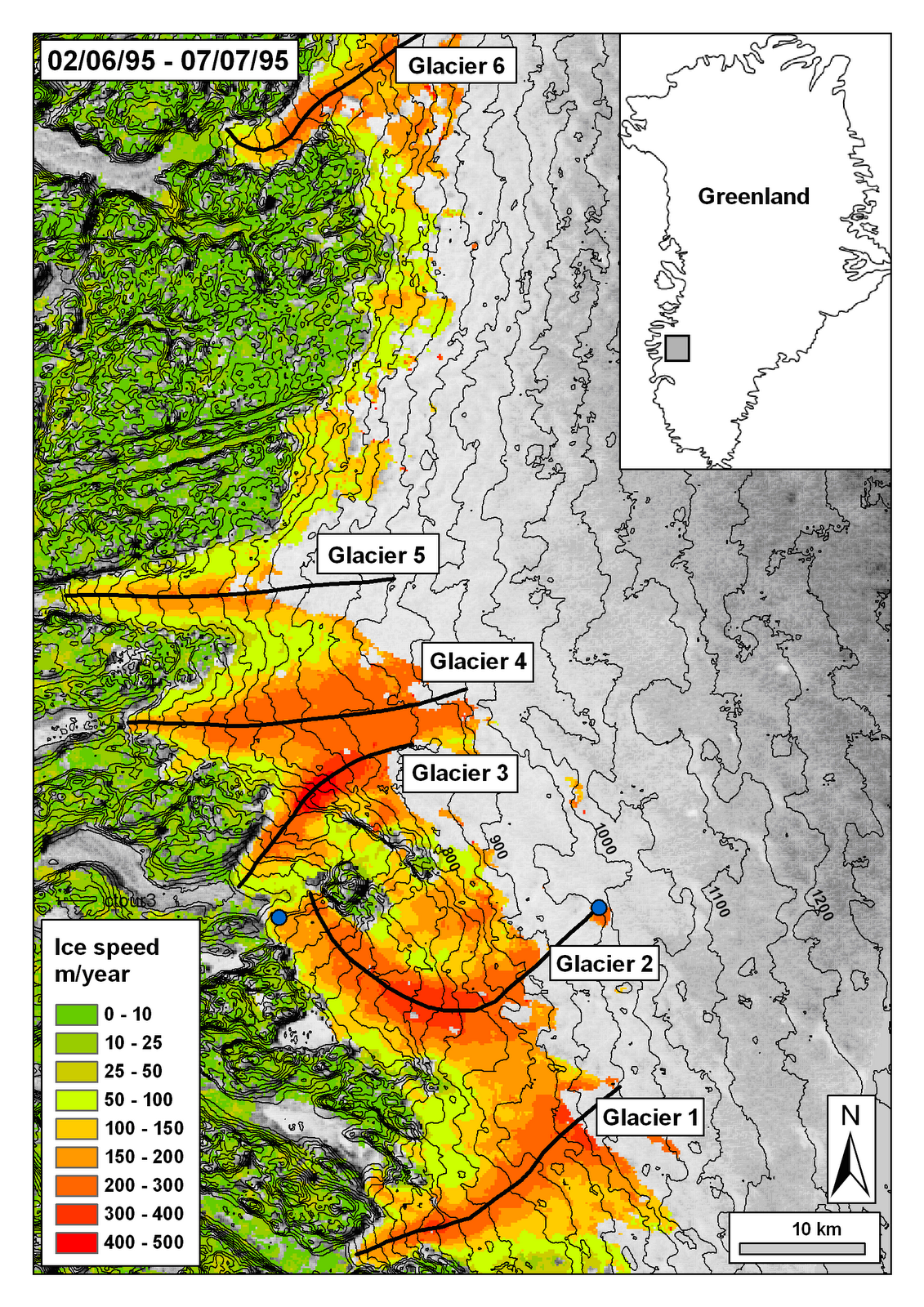

Figure 8. Inland terminating glaciers (Sundal et al., 2011).

This is what has been recently reported to be the case by Sundal et al. (2011).  The meltwater lubrication mechanism is real, but as observed is limited both in time and area impacted.  It is likely that, as on alpine glaciers, the seasonal speedup is offset by a greater slowdown late in the melt season.  Most observed acceleration due to high meltwater input has been on the order of several weeks, leading to a 10-20% flow increase for that period.  The role of supraglacial lakes in this has been a point of emphasis; Luthje et al. (2006) noted that the area covered by supraglacial lakes was independent of the summer melt rate but controlled by topography.  This led Luthje et al. to conclude that  the area covered by supraglacial lakes will remain constant even in a warmer climate.  This suggests that the enhancement of flow by the drainage of such lakes would be limited.

The land terminating glaciers such as Sukkertoppen, Russell and Mittivakkat are retreating significantly in response to global warming.   This is an indication of negative mass balance. The latter glacier in southeast Greenland has retreated 1,200 meters since 1931 (Mernhild et al., 2011).  The Mernhild study identified this slow rate compared to the outlet glaciers and, based on mass balance observations, that the current surface mass balance can only support a glacier at most one-third its current size.   This indicates the slow but inexorable sensitivity of the non-calving glacier to surface mass balance change.  Moon and Joughin (2008) observed that the retreat of the land terminating glaciers was relatively minor from 1992 to 2007, averaging 5 m/year or less.  These glaciers are the equivalent in our banking system to the local banks:  there are many and they are sensitive, but the changes in a single one is not important.

Type 3: Marine-terminating

Fast flowing marine terminating outlet glaciers of western and southeast Greenland (Rinks, Umiamako, Helheim, Jakobshavn, Epiq Sermia, etc.).  These are the glaciers that drain the greatest area of the ice sheet and deliver the greatest volume to the oceans via calving.  The flux from many of the larger glaciers is over 10 km³/year (DMI).  Each of these glaciers is fast-flowing at the terminus; the fast flow section extends inland into the ice sheet up a sub-glacial trough.  The outlet glaciers act like a drain capturing ice from a larger area of the ice sheet than their narrow terminus would suggest.

Figure 9. Marine-terminating glaciers (Thomas et al., 2009).

Pelto et al. (1989), in a paper on the equilibrium state of the Jakobshavn Glacier, showed that the terminus had not changed significantly in 30 years; its velocity had also been consistent.  Furthermore, it was observed that the velocity was consistent throughout the seasons.  This indicated that the glacier velocity was not being impacted by the meltwater pulse of summer.

Bob Thomas (NASA, 2004) and Terry Hughes (University of Maine, 1986) developed the basic mechanism of flow for the glacier that has proven to be true.  The outlet glaciers have a balance of forces at the calving front.  The fjord walls, the fjord base and the water column impede flow.  The slope of the glacier, its upglacier velocity and the height of the calving face strive to increase flow.  If the glacier thins than there is less friction at the calving front from the fjord walls and the fjord base, leading to greater flow.  The enhanced flow leads to retreat and further thinning, resulting in the thinning and the acceleration spreading inland.  In 1990 it was not envisioned that acceleration would occur as soon as it has, yet that was the motivation for the research.

Figure 10. Jakobshavn profile (Thomas et al., 2009).

In 2001, the acceleration of the Helheim, Jakobshavn and Kangerdlussaq Glaciers caught the attention of the world.  By 2007, acceleration had been noted at all 34 marine terminating outlet glaciers observed.

The acceleration was not significantly seasonal; Howat et al. (2010) noted a 15% seasonal component to the acceleration: it had spread inland and had led to retreat and thinning.  This demonstrated that the marine terminating glaciers were largely responding to a change in the balance of forces at the glacier front.

Figure 11. Ice flow velocity as color over SAR amplitude imagery of Jakobshavn Isbræ in (a) February 1992 and (b) October 2000. In addition to color, speed is contoured with thin black lines at 1,000 m/yr intervals and with thin white lines at 200, 400, 600, and 800 m/yr. Note how the ice front has calved back several kilometers from 1992 to 2000. Further retreat in subsequent years caused the glaciers speed to increase to 12,600 m/yr near the front (Ian Joughlin, Big Ice).

The recent increases in outlet glacier discharge have always been coincident with floating tongue losses.   This causes reduced back pressure at the glacier front, letting up on the brakes; the resulting glacier thinning leads to less basal friction and further acceleration.  If the glacier front retreats into deeper water the process will continue and increase.  This is why understanding the basal slope changes inland of the calving fronts is crucial. Moon and Joughin (2008) observed the terminus change of 203 glaciers from 1992 to 2007 and noted a synchronous ice sheet wide retreat of tidewater outlet glaciers. The thinning could be due to increased surface melt, basal melt or most likely a combination of the two.  Moon and Joughin (2008) reported for the 2000-2006 period:

• In the southeast quadrant 35 glaciers retreated an average of 174 m/year
• In the eastern quadrant 21 glacier retreated an average of 106 m/year
• In the northwest 64 glaciers retreated an average of 118 m/year.

Each quadrant’s retreat increased markedly after 2000.  The largest of this group are comparable to the banks that are too big for our banking system to allow them to fail:  they drain a substantial portion of the entire ice sheet and reach so far into the ice sheet that their behavior can impact that of other adjacent glaciers.

Type 4: Marine-terminating in Shallow Water

Marine terminating glaciers outlet glaciers in shallower water (Humboldt, Cornell, Steenstrup, etc.).  These glaciers do have calving termini but lack the large fast flowing feeder tongues extending into the glacier.  This is because there is not a topographic low under the ice sheet that funnels the flow.  Humboldt Glacier is the widest front of any Greenland glacier, wider even than Petermann Glacier.

Figure 12. Humboldt profile (Thomas et al., 2009).

However, the velocity on average is low at 100 m/year, and the base of the glacier is quite high.  This makes it difficult for a large calving retreat of the glacier to occur and extend inland.  Humboldt Glacier is retreating but, as the velocity profile indicates, the glacier, despite its size, does not tap dynamically into the center of the ice sheet.  These glaciers are substantial, but their failure (though significant for sea level) would not destabilize the ice sheet as a whole.

 Greenland Ice Sheet outlet glaciers: Zebras no more

 Overall in Greenland, the rate of area loss in marine-terminating glaciers during the 2010 melt season (419 km²) was 3.4 times that of the previous 8 years. There is now clear evidence that the ice area loss rate of the past decade (averaging 120 km²/year) is greater than loss rates pre-2000.  The exceptional extension of the ablation season in 2010 in southern Greenland indicates the vulnerability of these areas to expanded melt regions (Box et al., 2010).

The amazing aspect of Greenland glaciers is that (despite the specific variation in type, location specific fjord configuration, etc.) their response has been as uniform and synchronous to global warming as has been observed.  If this warming of the world persists long enough, the  ice “banks” of Greenland will begin to fail.  Those with the greatest reserves on their asset sheets and the fastest turnover, and thus having the greatest potential contributions to sea level rise over time, are:

• In the north, Zachariae (and to a lesser extent, Petermann)
• The fast flowing marine terminating outlet glaciers of western and southeast Greenland (Rinks, Umiamako, Helheim, Jakobshavn, Epiq Sermia and Kangerdlussaq)

---
